    Home / Auto Parts / NS12A Nox sensor repair kit

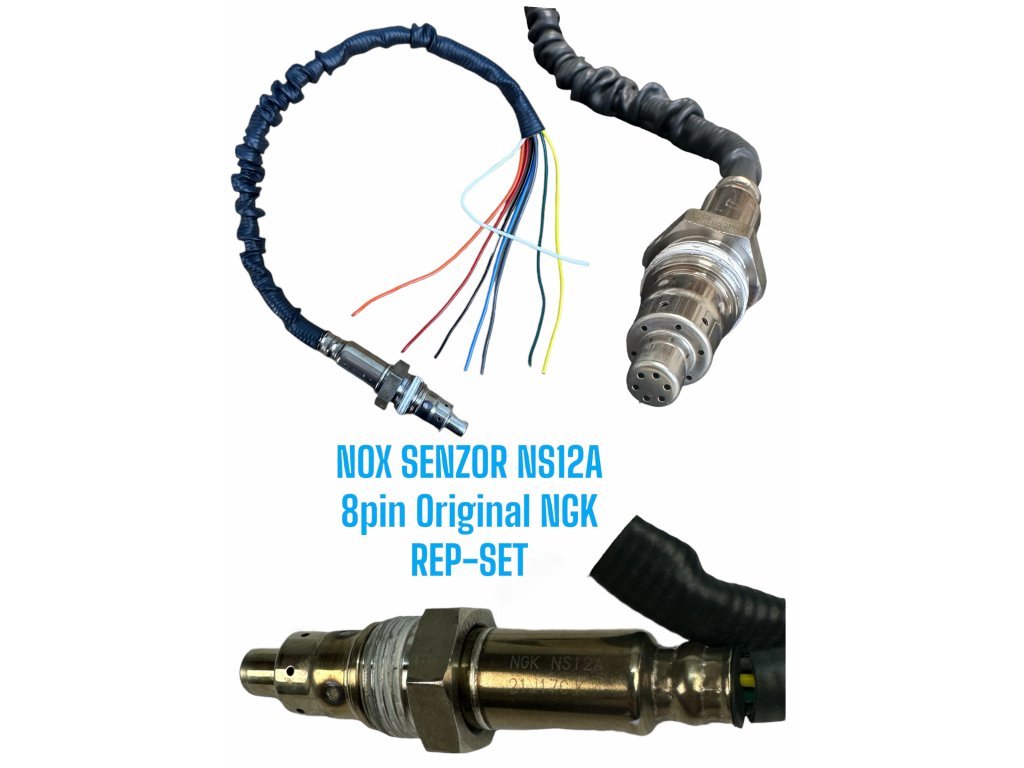

    NS12A Nox sensor repair kit

    Code: 211867
    Akce New Part
    211867 ns12a nox senzor opravna sada
    €135,69
    Sold out.
    The item has been sold out…

    Detailed information

    Product detailed description

    NS12A NOx sensor fits all vehicles such as VW, Audi, Mercedes-Benz, BMW, Citroean, Renault, Peugeot, GM, Opel, Vauxhall, Chrysler, Dodge, Cummins, Volvo, DAF, Iveco, MAN, CAT etc.

    If you are getting any of the following errors: P229F62, P229F63, P229F, P229E, P20EE00, P229e00, P229F00, P2200, P2201, P2202, P2203, P2204, P11DC, P11DB, P11CC, P20EE, P2BAD, P220B00 it means that the NOX sensor has failed and needs to be replaced.
    If you get the error message "Lost communication with NOX sensor A/B" (loss of communication with NOX sensor A or B) it means you need to replace the whole unit.

    Error codes that the NOX probe will NOT resolve:

    • Lost communication with sensor A or B
    • U029E00 - Lost communication with NOX sensor B
    • U029E - Check fuses
    • U029E-00
    • U029D00 - Lost communication with NOX sensor A - Lost communication with NOX sensor A
    • U029D - Check fuses
    • U029D00 - Communication with nox sensor has a malfunction
    • U029D - Fault in Communication with the DeNOX system
    • U029D-00

    Error codes thatCAN beresolved by the NOX probe:

    • P229f09 - Nox sensor 2 cylinder bank 1 has a malfunction there is a component fault
    • P229f28 - Nox sensor2 cylinder bank 1 has malfunction
    • P229FFD - NOx sensor 2 has malfunction
    • P229F62 Signal of NOx sensor implausible
    • P13D-F09 The AdBlue system has a malfunction. There is a component fault.
    • P229F-09 NOx sensor 2 (cylinder bank 1) has a malfunction. There is component fault.
    • P229F - Nitrogen Oxides (NOx) sensor 2, bank 1 - circuit range/performance
    • P229F-62 NOx sensor 2 (cylinder bank 1) has a malfunction. The Signal Comparison is faulty
    • P220400 the nox sensor (cylinder bank 1) has a sporadic malfunction.
    • P220000 the nox sensor (cylinder bank1) has an electrical fault._
    • P220162 - The NOx sensor (cylinder bank 1) has a malfunction. The signal comparison is faulty.
    • P204F96 - The AdBlue system (cylinder bank 1) has a malfunction. There is an internal component fault.
    • P140300 - The control unit AdBlue has a malfunction.
    • P220E77 - The heater of NOx sensor 1 (cylinder bank 1) has a malfunction. The commanded position cannot be reached.
    • P220E77 - The commanded position cannot be reached.
    • P220221 - The NOx sensor (cylinder bank 1) has a short circuit to ground. The signal amplitude is less than the minimum amplitude.
    • P22011 - The NOx sensor (cylinder bank 1) has an electrical fault. There is a short circuit to ground.
    • P229FE1 P229F(E1) Nitrogen oxides (NOx) sensor 2, bank 1 - circuit range/performance
    • P220A0(16) Nitrogen oxides (NOx) sensor 2, bank 1 - circuit low
    • P220A - Nitrogen Oxide (NOx) sensor supply voltage circuit bank 1 sensor 1 current.
    • P229E(11) Nitrogen oxides (NOx) sensor 2, bank 1 - circuit malfunction
    • P22A0 Nitrogen oxides (NOx) sensor 2, bank 1 - circuit low
    • P2200
    • P220011 P2200-11 - NOx sensor circuit malfunction (Bank 1)
    • P2201
    • P2201-62 NOx sensor (cylinder bank 1) has a malfunction. The signal comparison is faulty.
    • P2202 - NOx Sensor Circuit Low Bank 1
    • P2203-00 - NOx Sensor 1 Bank 1 Signal too High
    • P2204
    • P2214 - NOx Sensor Circuit Range/Performance Bank 2
    • P22A021 - NOx sensor 2 (cylinder bank 1) has a short circuit to ground. The signal amplitude is less than the minimum amplitude
    • P22A677 - The heater of NOx sensor 2 (cylinder bank 1) has an electrical fault. The commanded position cannot be reached.
    • P2BA901 - The emission limit for the NOx concentration has been exceeded (Adblue quality is too low). There is a general electrical fault.
    • P13DF09 - The Adblue system has a malfunction. There is a component fault.
    • P13E400 - The remaining driving distance is limited due to a malfunction in the AdBlue system.
    • P22A0 - Nitrogen Oxides NOx sensor 2 Circuit Low Voltage Bank 2
    • P22A1-22 P22A122 NOx sensor 2(cylinder bank1) has a short circuit to positive. The signal amplitude is greater than the maximum amplitude.
    • P229F-23 P229F23 NOx sensor 2(cylinder bank1) has a malfunction. No signal change: voltage level is too low.
    • P2202, P229F - Fehlercode
    • P220013 - The NOx sensor 1 (cylinder bank1) has an electrical fault. There is an open circuit.
    • P220108 The NOx sensor (cylinder bank 1) has a malfunction. There is a signal fault or the message is faulty.
    • P221408 The NOx sensor (cylinder bank 2) has a malfunction. There is a signal fault or the message is faulty.
    • P220B00
    • P1033 Nitrogen Oxides Sensor Signal Too Low
    • P11DC - NOx Sensor Current Performance Bank 1 Sensor 2
    • P11DB - NOx Sensor Current Performance Bank 1 Sensor 1
    • P11CC - Nox Sensor 1 Performance Signal Low
    • P20EE - Nitrogen Oxide (Nox) Catalyst Efficiency below Threshold
    • P20EE00 - SCR NOx catalytic converter bank 1 error message: efficiency too. low sporadic fault
    • P2BAD - Exhaust Nitrogen Oxide (NOx) Concentration high
    • P20C9:00 P20C900 - reductant control module requested MIL illumination
    • P2BAE:00 P2BAE00 - NOx exceedence - NOx control monitoring system
    • P2BAE-00 (2F) NOx exceedance - NOx control monitoring system
    • P229E13 P229E-13
    • P229E-11 P229E11
    • 2AEC Nitrogen Oxide Sensor Self Diagnostics
    • 2AF0; 2B05 nitric oxide sensor, heating
    • 2AF2; 2B06; 2B09 nitric oxide sensor, Lambda linear
    • 2AF4; 2B07; 2B0A NOx sensor, electrical
    • 2AF6; 2AFB; 2B0B nitric oxide sensor, Lambda binary
    • 2AF9 nox sensor, nox signal: coast mode check
    • 2EAE NOx sensor message missing (timeout)
    • 30D6 nitric oxide sensor, plausibility
    • 30D8 NOx sensor, Sensor damaged
    • 30DA NOx sensor, heating time
    • 30DC nitric oxide sensor, heating
    • 30DE NOx sensor - Lambdaprobe before catalyst, Correlation
    • 30E0 NOx sensor, Offset
    • 30E2 nitric oxide sensor, thrust test
    • 30E4 nitric oxide sensor, aging
    • 30E6 nitric oxide sensor, dynamic
